30 Ft SS Bailey Bridge Construction - 14 - 16 Aug 1944, 3 Platoon, 16th Cdn Field Company, RCE

Post by Temujin » Mon Apr 29, 2019 6:32 pm


User avatar
Temujin
Meritorious
Meritorious
Posts: 1411
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 62

Re: 30 Ft SS Bailey Bridge Construction - 14 - 16 Aug 1944, 3 Platoon, 16th Cdn Field Company, RCE

Post by Temujin » Mon Apr 29, 2019 11:04 pm

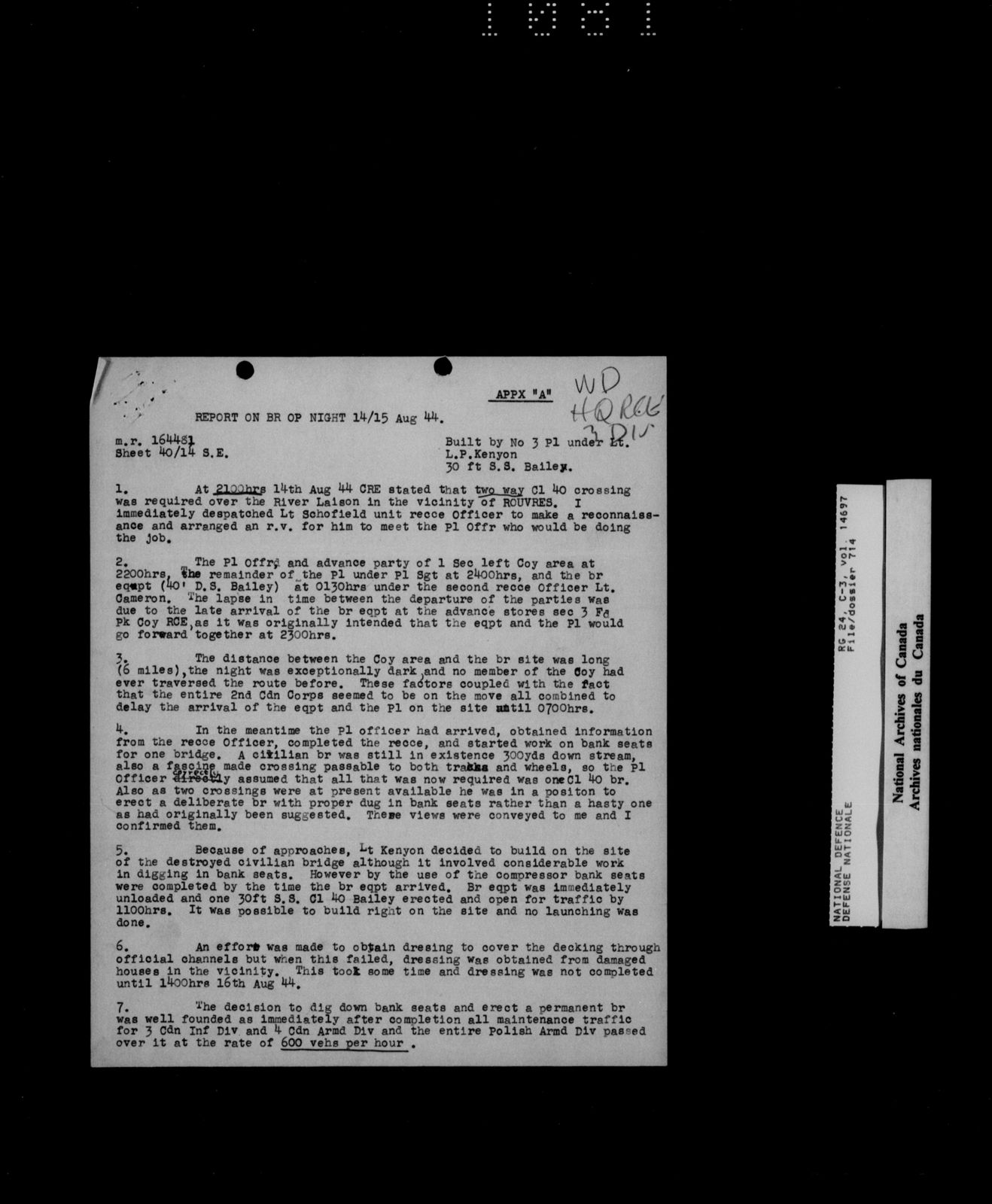

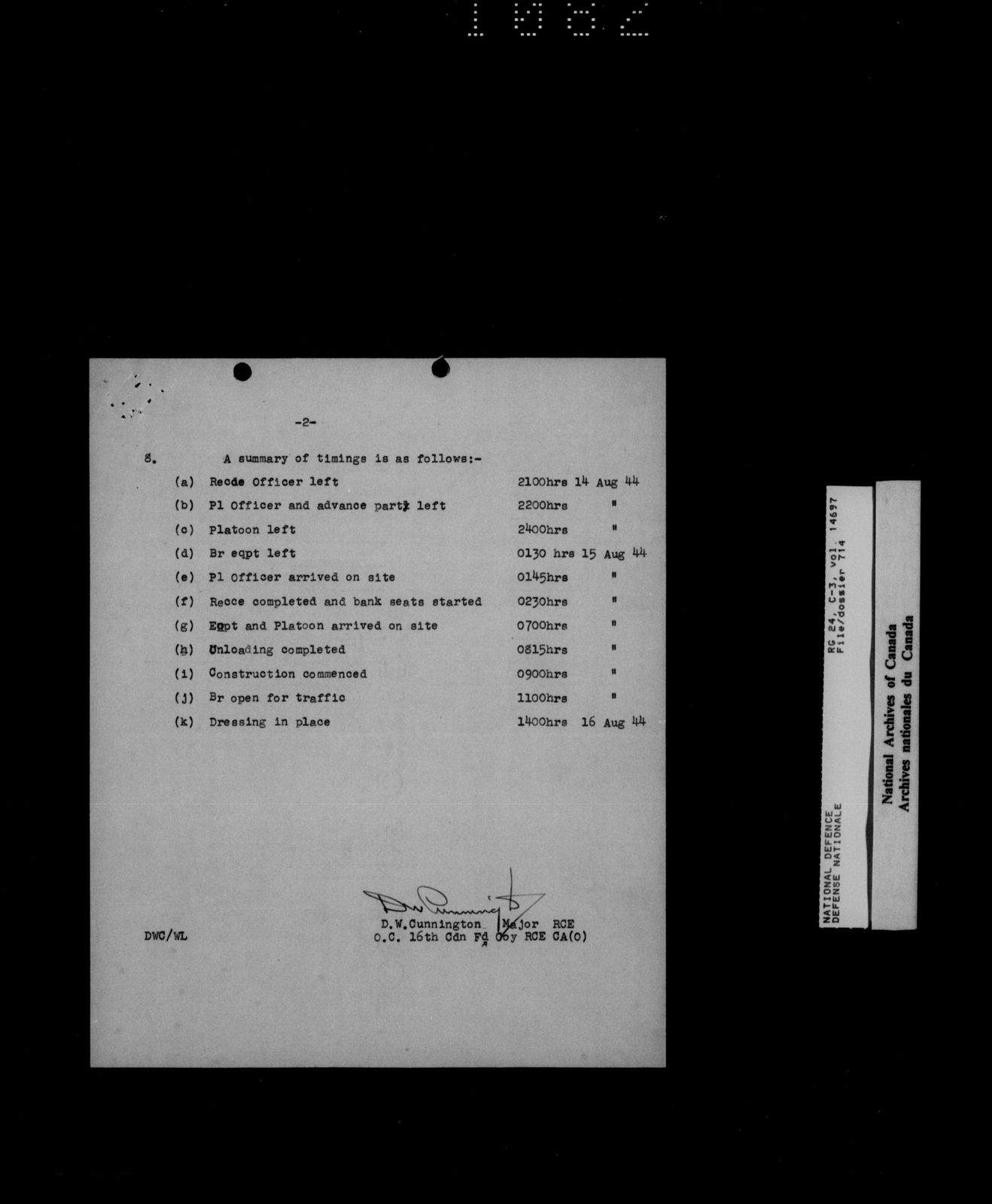

After finding and posting the above information.......I starting wondering, “where was this bridge”..........so found the proper map Sht 40/14 SE and using the Map Reference 164 481, found the location.

First map is “full size” and the location in the red circle

Second map, is zoomed in on the Map Reference, and you can see the civilian bridge, over the River Laison, where they constructed a “single wide, single height” Class 40 bailey. After construction this bridge stood up to 600 vehicles an hour crossing it
[/size]

User avatar
Temujin
Meritorious
Meritorious
Posts: 1411
Joined: Sat Apr 14, 2018 6:39 pm
Commendations: 62

Re: 30 Ft SS Bailey Bridge Construction - 14 - 16 Aug 1944, 3 Platoon, 16th Cdn Field Company, RCE

Post by Temujin » Mon Apr 29, 2019 11:23 pm

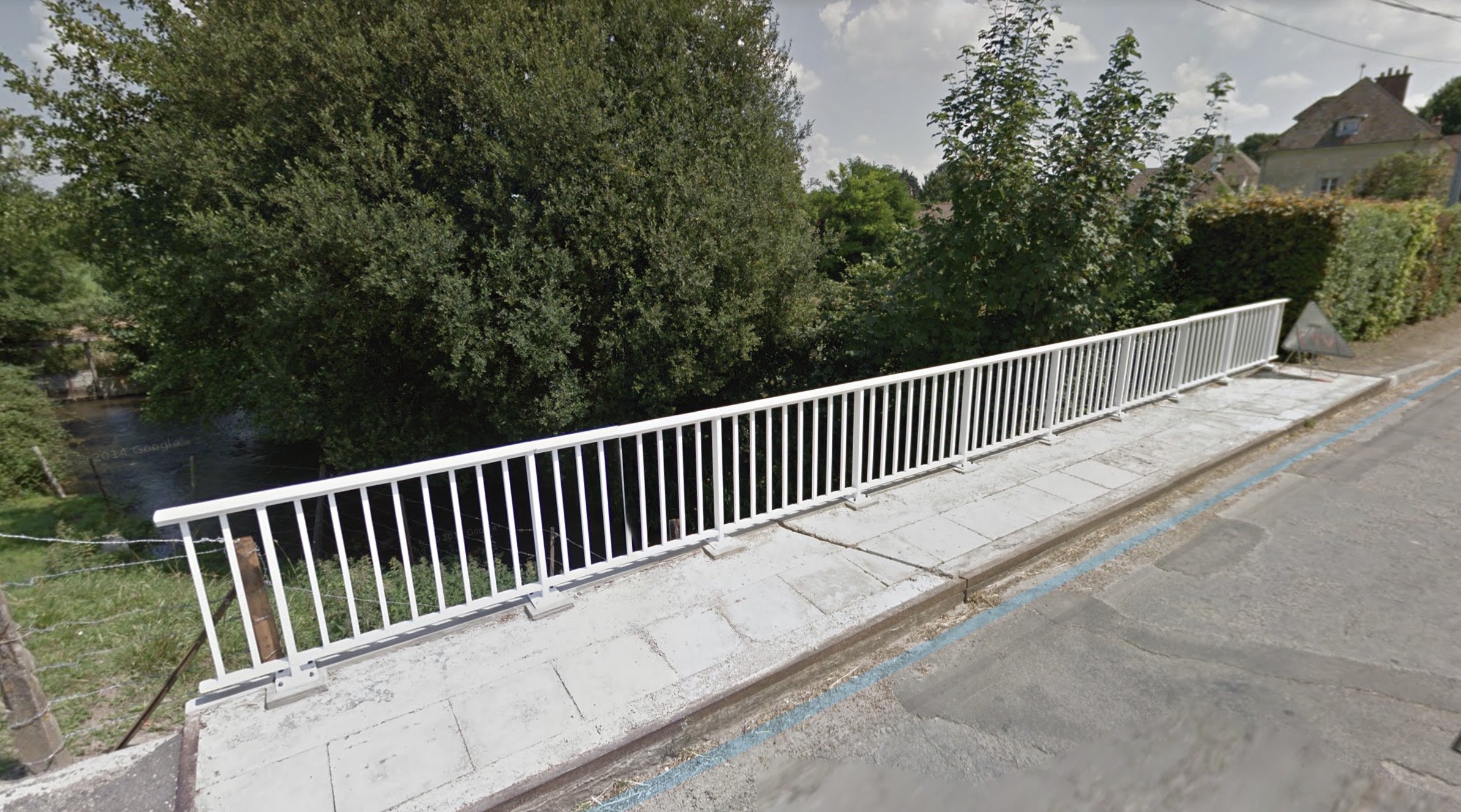

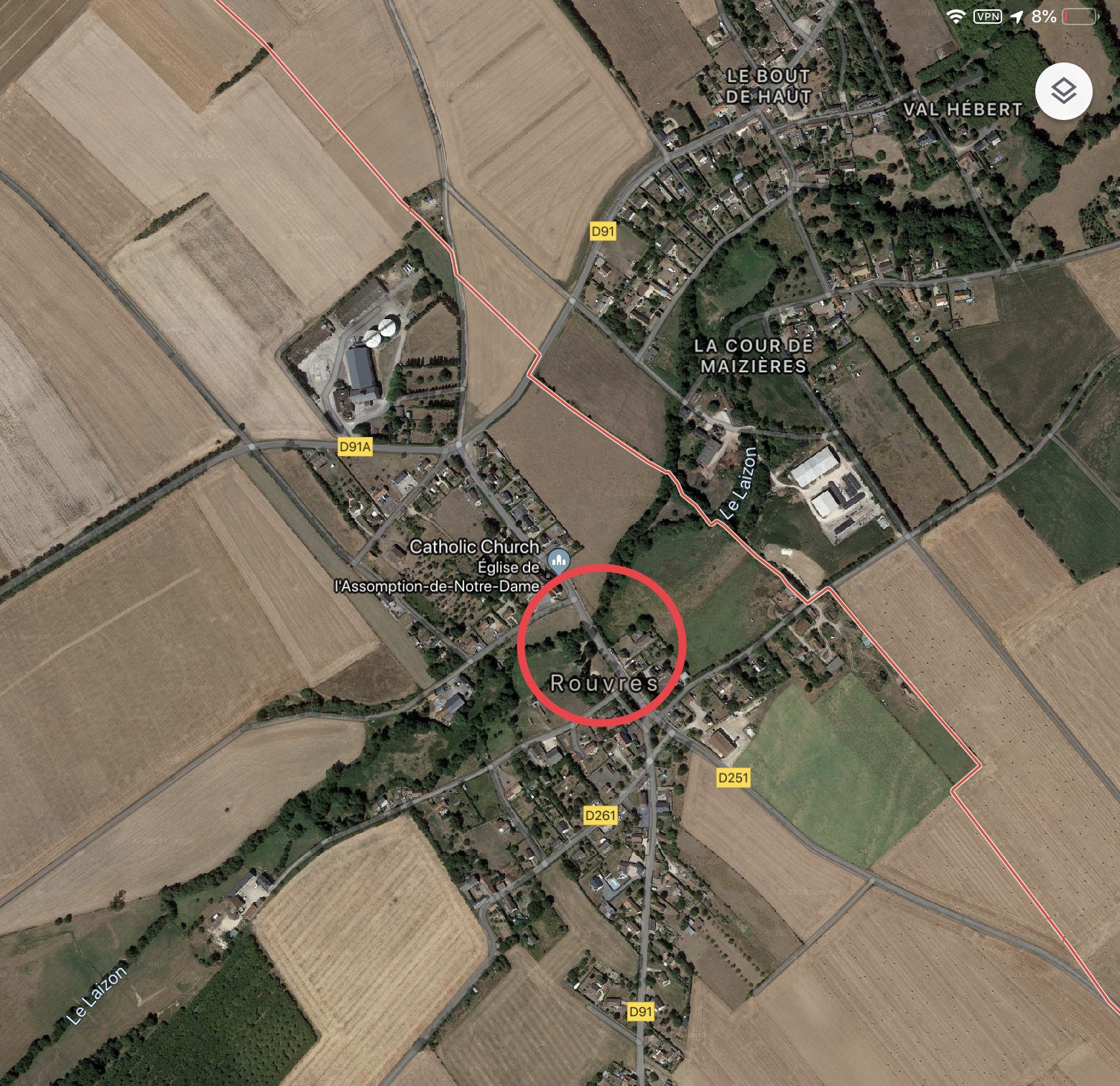

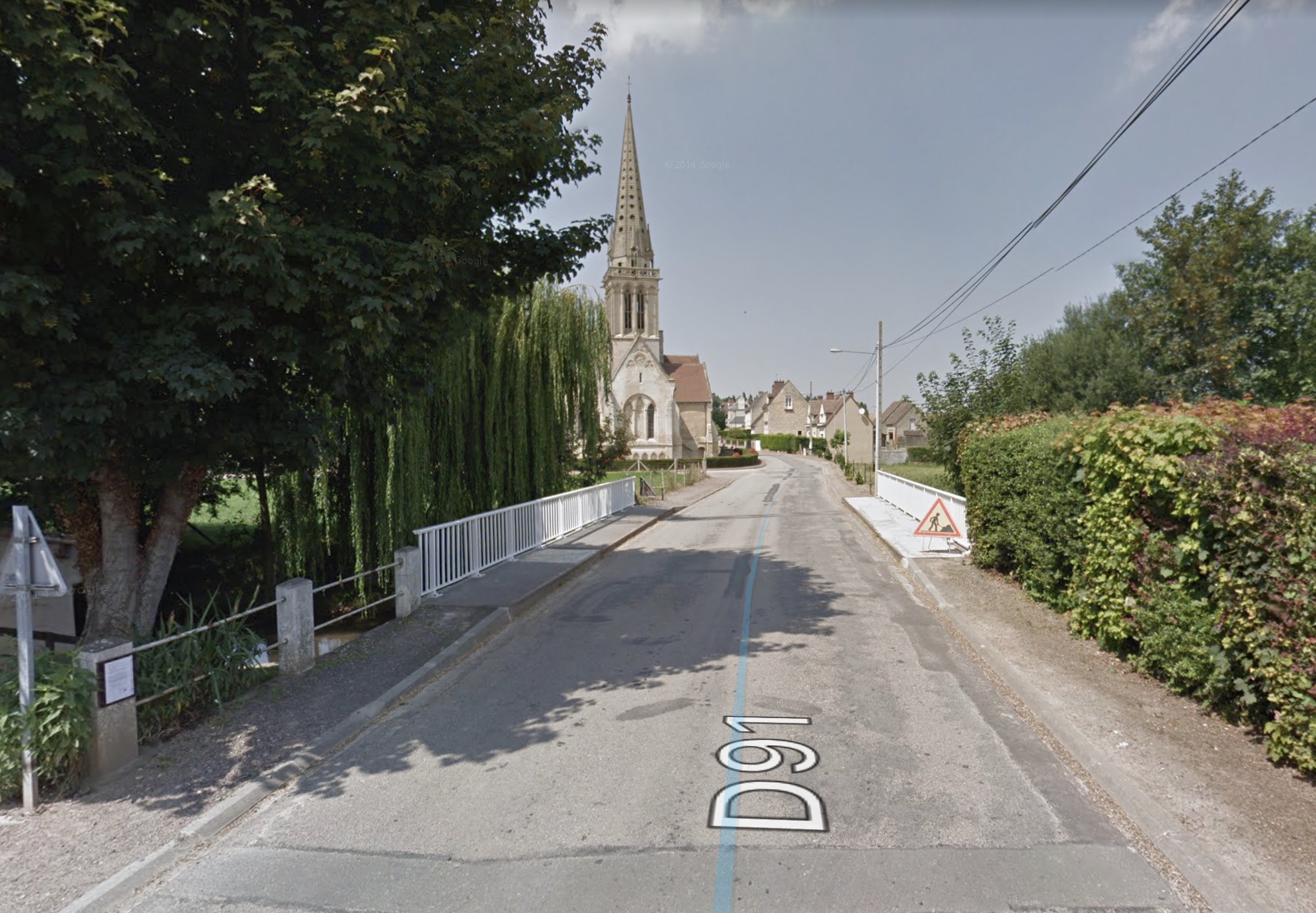

The bridge location today......
